Importing DICOM Files Using the Flywheel CLI

Introduction

If you have existing DICOM data you would like to add to Flywheel you can use the Flywheel CLI. The Flywheel CLI reads through directories of files and uses the DICOM header information to group them into the correct Acquisitions, Sessions, and Subjects in Flywheel.

This article explains how to use two commands to import DICOM images: ingest dicom.

Limitations & Considerations

  • If using the ingest command, DICOM data must have one of the following file extensions:
    • .dcm,
    • .dcm.gz,
    • .dicom,
    • .dicom.gz,
    • .ima, or
    • .ima.gz.

See our other import options if you have non-DICOM files.

  • Verify you have Read-Write permissions to the Group and Project you are importing the data to.

Instruction Steps

Ingest DICOM

To use the ingest DICOM command to upload data from your computer or from an cloud storage bucket:

Upload Data from your Computer

  1. Follow these instructions to download and sign in to the Flywheel CLI If you cannot download the Flywheel CLI to your computer, you can upload smaller batches of DICOM files using your web browser.
  2. Open Terminal or Windows Command Prompt.
  3. Note the location of the parent folder containing the DICOM files you are importing.
  4. The Flywheel CLI allows you to either create a new Flywheel Group and Project on import or use a Group and Project that already exists.

    • To create a new Group or Project: Enter a new Group ID and Project Label in the command below.
    • To get information for an existing Group and Project:

      1. Sign in to your Flywheel account.
      2. Select the project where you would like to import the DICOM data.
      3. At the top of the project page, copy the Group ID and Project label.


  5. In Terminal or Windows Command Prompt, start with the following command, which includes all of the required information to import the folder:

    fw ingest dicom <optional flags> <SRC:path to DICOM folder> <group_ID> <project_label>

    For example: fw ingest dicom --verbose ~/Desktop/flywheel psychology "Anxiety Study"

    Note

    If your project label includes spaces, place quotes around it when entering the command.*

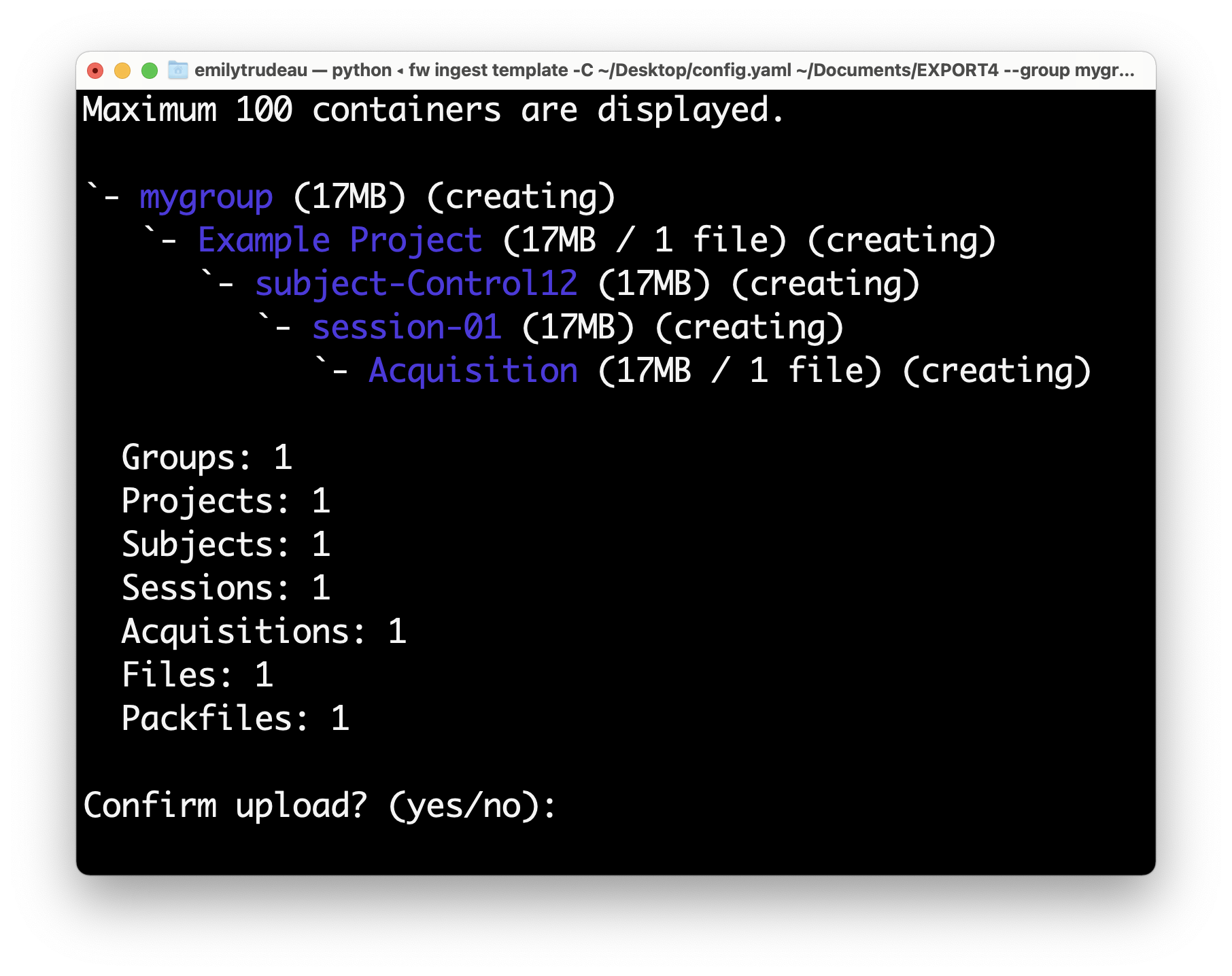

  6. Review the hierarchy and scan summary to make sure it matches what you expect.


    Tip

    To view where in the Flywheel hierarchy the data will be imported, use the --verbose flag. This also displays if Flywheel will create a new group, project, subject, session, or acquisition container or if it will upload the data to an existing container.

  7. Enter yes to begin importing.

    The Flywheel CLI displays its import progress.

  8. Once complete, sign in to Flywheel, and view your data.

From a Cloud Storage Bucket

Follow these instructions to upload data from AWS, Google, or Azure to Flywheel.

  1. Configure the credentials for your bucket. The Flywheel CLI uses these credentials to access data in the storage bucket, so you must configure them before running the ingest command. The Flywheel CLI does not support passing credential parameters to it. Make sure that the user has read/write access to data in the bucket.

  2. Start with the following command:

    fw ingest dicom <optional flags> <SRC:path to DICOM folder> <group_ID> <project_label>

    Populate the relevant information for your data and environment, and add any optional flags. Use the following format for buckets:

    • S3: s3://bucket-name/key-name
    • Google Cloud: gs://BUCKET_NAME1/
    • Azure: https://myaccount.blob.core.windows.net/mycontainer/myblob

    For example:

    fw ingest dicom s3://MyStudy/DataForUpload psychology "Anxiety Study"

    Note

    If you are using the config file to de-id data, you must include the --de-identify flag.

    See the ingest template reference guide for more information on the optional flags.

    If you have a have the cluster feature turned on in your Flywheel environment, and the cluster can access your s3 storage, you can use the --cluster <cluster URL> optional flag. This will use the cluster's resources to upload data faster. If you do not have cluster ingest enabled, continue to the next step.

    The cluster URL for your Flywheel environment uses this format: https://yourflywheelURL.com/ingests.

    For example:

    fw ingest dicom --cluster https://university.flywheel.io/ingests s3://MyStudy/DataForUpload psychology "Anxiety Study"

  3. Copy and paste your command into Terminal or Windows Command prompt, and hit enter. Flywheel CLI displays the data it has found.

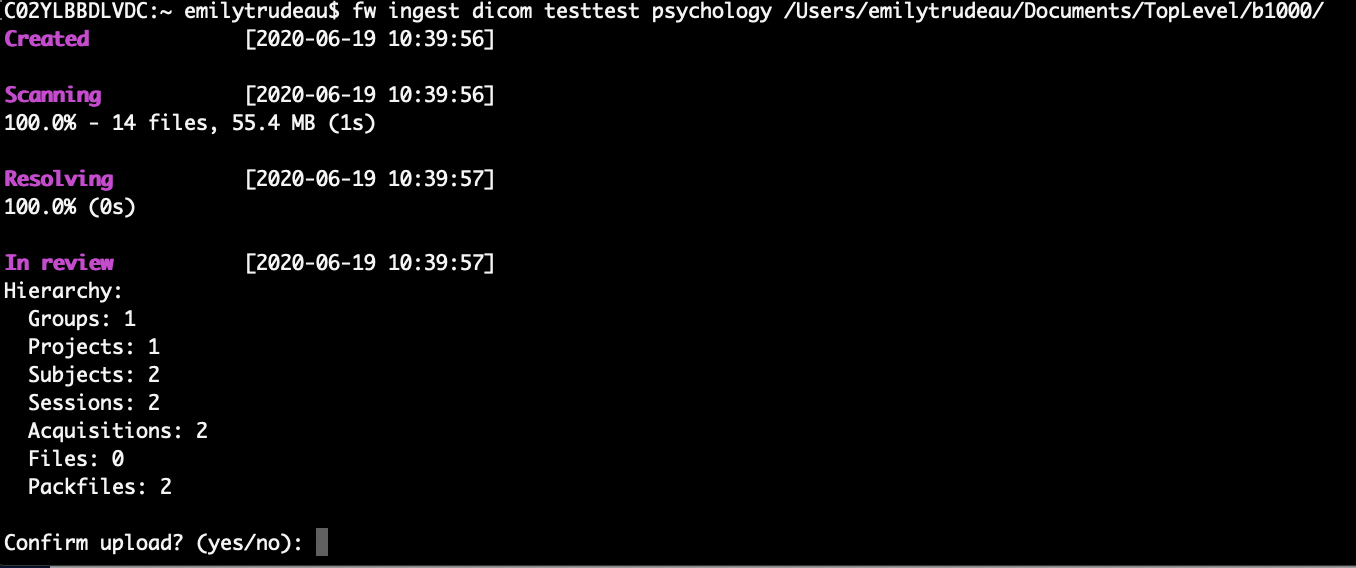

  4. Review the hierarchy and scan summary to make sure it matches what you expect.

  5. Enter yes to begin importing. The Flywheel CLI displays its import progress.

  6. Once complete, sign in to Flywheel and view your data.

Additional Examples and Troubleshooting

De-identify Data Prior To Entering Flywheel

If your data hasn't already been de-identified, you can use the default de-id option in the CLI. This flag removes the DICOM tags PatientID, PatientName, and PatientBirthDate.

An example command:

fw import dicom <DICOM_Folder_Location> <group_ID> <project_label>

The Flywheel CLI also gives you the option to create custom de-identification configurations. See the article to learn more about how to create a customized de-ID profile.

Troubleshooting

Use the debug flag to see which data isn't being imported. For example:

fw import dicom <DICOM Folder Location> <group_ID> <project_label> --debug

For example, the following output shows that some of the DICOM files are zipped, so the import dicom command can't import the files:

DEBUG: CLI Version: 8.7.0
DEBUG: CLI Args: ['/Users/exampleUser/.cache/flywheel/python-3.6.6/lib/python3.6/site-packages/flywheel_cli/main.pyc', 'import', 'dicom', '--debug', '--audit-log-path', '/Users/exampleUser/Documents/AuditLogs/AuditLog', '/Users/exampleUser/Documents/SampleData', 'example', 'project']
DEBUG: Platform: Darwin-18.7.0-x86_64-i386-64bit
DEBUG: System Encoding: UTF-8
DEBUG: Python Version: 3.6.6 (default, Jul 17 2018, 08:21:56)
[GCC 4.2.1 Compatible Apple LLVM 7.0.2 (clang-700.1.81)]
DEBUG: SDK Version: 8.2.0
DEBUG: Flywheel Site URL: https://dev.flywheel.io:443/api
DEBUG: Using source filesystem: osfs:///Users/exampleUser/Documents/SampleData
**DEBUG: Ignoring non-DICOM file: Flywheel/fwtest/AmygdalaStructure/amyg_s4/amyg_s4_amyg_sess1_pcolA/DTI 2mm 30dir 2x b1000_0/8892_14_1_dti.dcm.zip****DEBUG: Ignoring non-DICOM file: Flywheel/fwtest/AmygdalaStructure/amyg_s11/amyg_s11_amyg_sess2_pcolA/test/10+cmrr_mbepi_task-spatialfrequency_s6_2mm_66sl_PA_TR1.0.dicom.zip****DEBUG: Ignoring non-DICOM file: Flywheel/psychology/Anxiety Study/anx_s2/anx_s2_anx_ses1_protA/DTI 2mm 30dir 2x b1000/8892_14_1_dti.dcm.zip****DEBUG: Ignoring non-DICOM file: Flywheel/psychology/Anxiety Study/anx_s4/anx_s4_anx_ses1_protA/DTI 2mm 30dir 2x b1000/8892_14_1_dti.dcm.zip**
