Importing a Structured Folder of Imaging Data with the CLI
Introduction
The folder
command should be used if you are importing data that you previously downloaded from Flywheel, or if you are importing data that was shared from another Flywheel site.
This article explains how to use the ingest folder command.
The folder

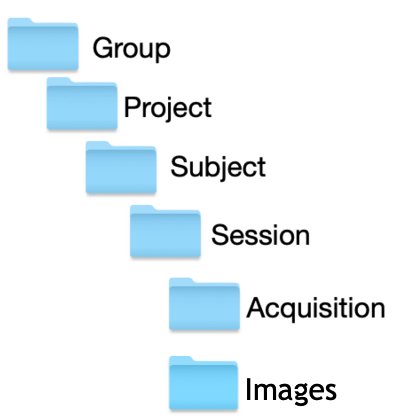

command requires your directory of data to exactly match the the Flywheel hierarchy. Below is the basic Flywheel hierarchy:
Strict Folder Structure
If the directory you are importing does not exactly match the directory shown in the image above, consider using another method to import your images. For example, if all of your images are DICOMs, consider using our dicom importer to automatically determine containers in Flywheel for your data.
This option also groups images by subjects and sessions. Learn about the other ways to import data.
Prerequisites
- Follow these instructions to download and install the Flywheel CLI. If you cannot download the Flywheel CLI to your computer, you can upload smaller batches of files using your web browser.
Unsupported File Types
The ingest folder command does not support uploading site, group, or project de-ID profiles.
Use one of these supported methods if you are uploading site, group, or project de-ID profiles.
Instruction Steps
Steps for Ingest Folder
- Open Terminal.
- Note the location of the parent folder for your data.
- If your DICOM images are in a .zip file, unzip them.
-
Enter the ingest folder command:
fw ingest folder <optional flags> --group <groupid> --project <projectlabel> --dicom <folder with images> <SRC>
For example:
fw ingest folder --group psychology --project MyProject --dicom dcm001 ~/Desktop/MultiCenterStudy
- The
--group
and--project
flags designate where in Flywheel the data should be imported. This overwrites whatever the name of the folder is in the directory you are uploading. - The
--dicom
flag takes subfolders with DICOM images, analyzes them, zips them, and adds them as acquisitions. The--dicom
flag is required if you have enabled project, group, or site de-ID profiles for de-identification.
- The
-
Review the hierarchy and scan summary to make sure it matches what you expect.
-
Enter yes to begin ingesting.
The Flywheel CLI displays its ingest progress
-
Sign in to Flywheel to view your data.
Troubleshooting
Each level in the Flywheel hierarchy must be specified during ingest. This means you must either:
- Have a folder for each container (Group, Project, Subject, Session, Acquisitions, and images), or
- Manually configure the container using an optional flag. For example:
--group <groupID>
or--project <project label>
.
For more information about the optional flags, see our reference guide.
