OHIF Config File

Introduction

From creating your own labels to controlling the hanging protocol, the ohif_config.json file is a powerful tool for customizing your Flywheel workflows. Additionally, you can also build your own blind reader study questions to display alongside images. Using the integrated viewer and study forms allows you to automatically capture responses to form questions alongside the images themselves.

This guide describes the configuration options in the ohif_config.json file.

Viewer Settings

These settings configure the look and feel of the viewer including from hiding toolbar options, to creating custom labels for ROIS, and configuring keyboard shortcuts.

general settings: includes enabling timers, hiding measurements, and configuring how multiple contours interact.
toolbar: hide tools that do not apply to your workflow
labels: Add custom labels along with limits on how many times each label should be used
layouts: Configure the hanging protocol for the viewer
hotkeys: Configure keyboard shortcuts inside the viewer
mouseActions: Configure what mouse actions for inside the viewer

Instruction Steps

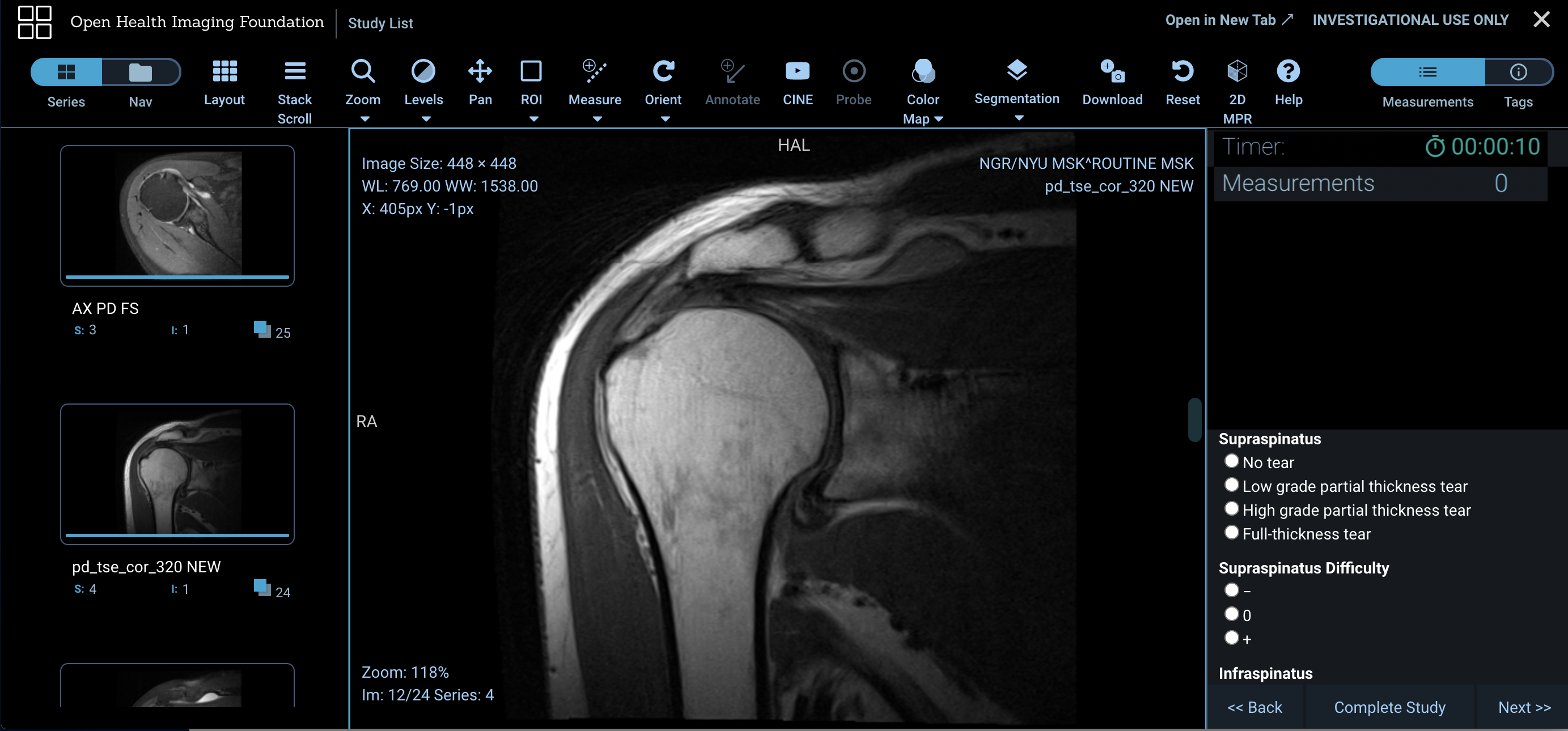

Build a Study Form

Create questions for readers to answer using the studyForm configurations. Learn more about studyForm options.

Applying the OHIF configurations

To apply these configurations to your project:

Run the file through a linter such as the Online JSON linter to make sure you have valid JSON.
Save the files as ohif_config.json.

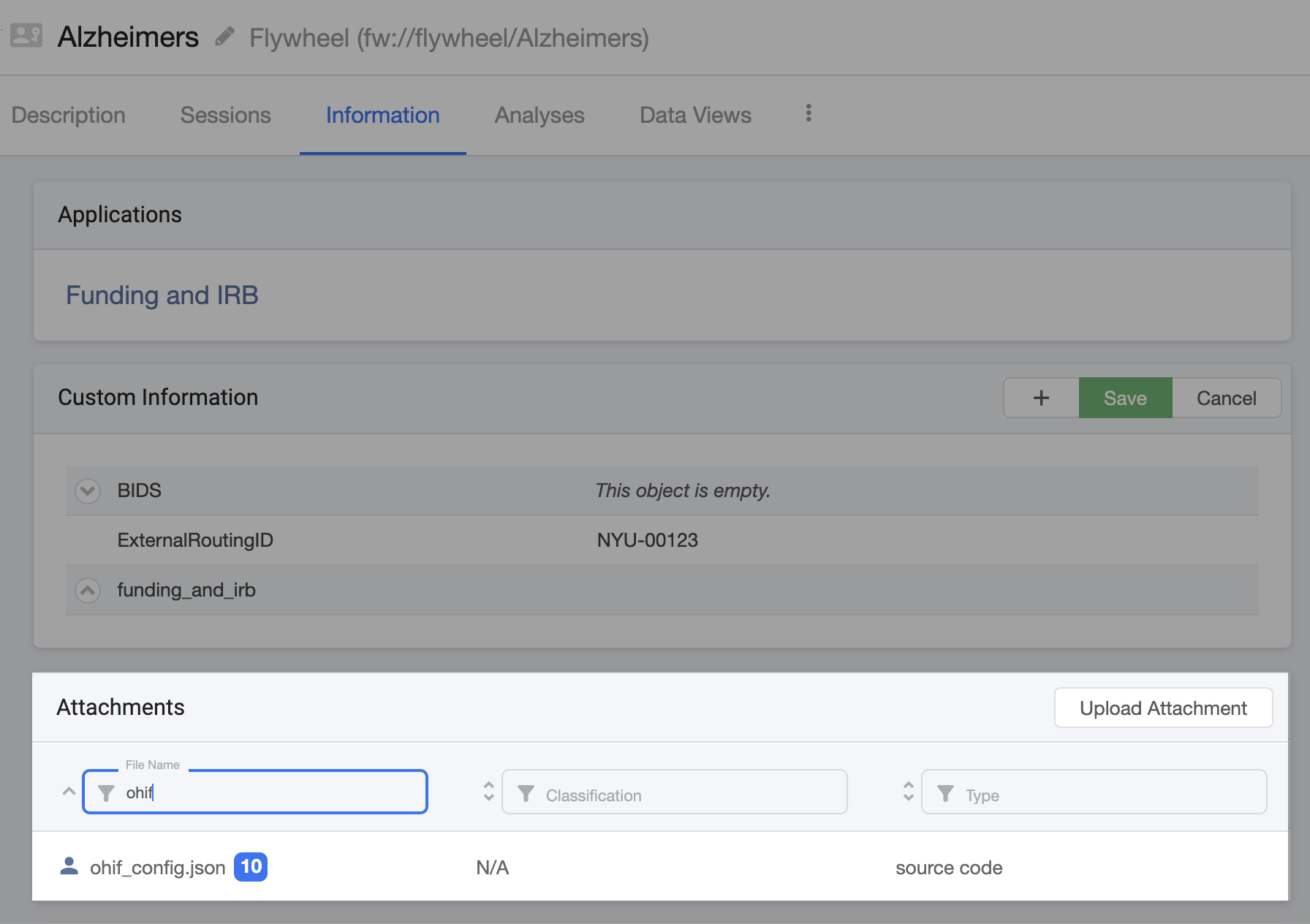

Go to the Information tab for your project, and upload it as an attachment

| | | --- |

General Settings

These are the top level of settings in the ohif_config.json file

Property	Description	Value	Required
`allowDraft`	Enable or Disable the draft feature in study form	boolean	no
`automatedLabelling`	Automatically applies a label to a measurement. This setting is enable by default. Set to false to disable. Automate labeling only applies in study form questions where both the `requireMeasurements` and the `measurementTools` are configured.	boolean	no
`contourUnique`	When set to true, contours/ROIs cannot overlap on the same slice	boolean	no
`draftStudy`		boolean	no
`hideFreehandVertex`	Vertex points are not displayed on the image	boolean	no
`hideMeasurementOutput`	Measurement output are not displayed on the image	boolean	no
`hideMeasurements`	Hide measurements in the right panel If `studyForm` and its components are not included and `hideMeasurements: true`, no study summary/form will be displayed but measurements will be If `studyForm` and its components are not included and `hideMeasurements: false` , no study summary/form or measurements will be displayed	boolean	no
`hideROIOutput`	ROI area, mean, std dev are not displayed on the image	boolean	no
`labels`	Custom labels for measurements in the OHIF Viewer See the labels section for more details	Array of objects with the following properties: **label - The text displayed as a measurement option** value - The key to store measurement data under limit - The number of allowed measurements using this label per study boundary-Sets a boundary for the contour so that distinct features cannot overlap	no
`layouts`	Define the hanging protocol for grid and asymmetric layout See the layouts section for more details	object	no
`overlay`	Defines which DICOM tags to display on an image in the viewer See the overlay section for more details	object	no
`resetTool`	Reset the active tool when loading a new study	boolean	no
`studyForm`	Options for creating a study form See the `studyForm` section for more details	object	no
`timerOn`	Run timer until reader moves to the next session. Total “read time” is captured and saved along with form input as metadata on the session	boolean	no
`timerVisible`	Displays timer for the reader in the right panel	boolean	no
`toolbar`	Configure available tools in the toolbar See below for more details	object	no

Example

{
  "draftStudy": true,
  "resetTool": false,
  "hideFreehandVertex": true,
  "hideROIOutput": true,
  "hideMeasurements": false,
  "timerOn": true,
  "timerVisible": true,
  "contourUnique": true,
  "automatedLabelling": true,
  "overlay": [],
  "labels": [],
  "studyForm": [],
  "hotkeys": [],
  "toolbar": []
}

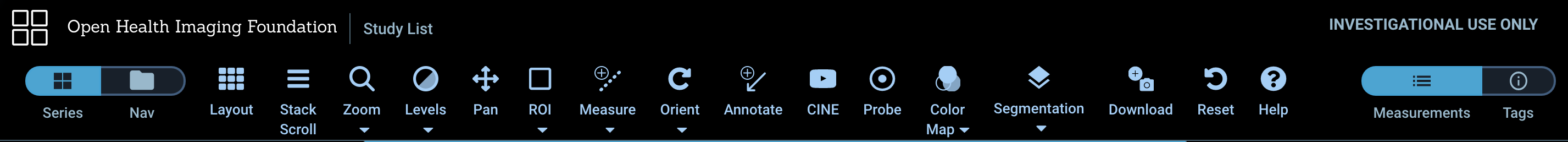

The toolbar section allows the tool set to be trimmed down by category. Below is the default toolbar:

Table 2. The viewer toolbar

Tool	Description	Default hotkey or keyboard shortcut
Series	View series in the left menu	none
Nav	Navigate to a different session from the same subject. This allows you to view multiple sessions at the same time.	none
Layout	Add additional viewports and select their position	none
Stack Scroll	Navigates quickly on the stack of images by dragging up and down inside the viewport	s
Zoom	Zoom or Magnify the region of the image under the pointer	z or m
Levels	Changes the window width or window center by swiping horizontally or vertically.	none
Invert	Inverts the colors of the image in the active viewport	i
Pan	Allows navigating on the image by dragging	p
ROI
Manual Rotate	Rotates the image in the active viewport	None
Ellipse	Draws an ellipse with measurements and allows you to choose a label	None
Rectangle	Draws a rectangle with measurements and allows you to choose a label	None
ROI Window	Sets the window width/length of the viewport as the average value in the rectangular region	None
Freehand	Draws freehand region	None
Open Freehand	Draws an open-ended freehand annotation	None
Sculpt	Adjust a freehand ROI or open-freehand ROI	None
Eraser	Erases a selected measurement	None
Clear	Clears all current measurements	None
Measure
Length	Calculates the length between two points. Metadata about the results appear in the measurements panel.	None
Bidirectional	Draws two perpendicular lines with width and length. Metadata about the results appear in the measurements panel.	None
Freehand	Draws a freehand region. Metadata about the results appear in the measurements panel	None
Angle	Determines the smallest angle between three points. Metadata about the results appear in the measurements panel	a
Orient
Manual rotate	Rotates the image in the active viewport	None
Rotate right	Rotates the image 90 degrees	r (rotate right) l (rotate left)
Flip H	Flips the image in the active viewport horizontally	h
Flip V	Flips the image in the active viewport vertically	v

Annotate	Adds an arrow with custom text as annotation Metadata about the results appear in the measurements panel	None
CINE	Shows playback dialog with finer controls for playing sequences	None
Probe	Determines the numeric image value under the cursor	None
Colormap	Colormap: Choose an image colormap	None
Segmentation	Loads segmentation overlays on to active NIFTI or DICOM viewports.	None
Link	Synchronizes different viewports on scroll, levels, or zoom Select a layout with more than one viewport to see this option	None
Crosshairs	Sync different slices of the same data	None
2DMPR	Switch to 2D MPR viewer	d
Reset	Resets all modifications made to the current images viewport	None
Measurements	Displays any annotations, ROIs, or measurements along with more information on who added it and when. This is also where a study form appears if configured	None
Tags	Displays all DICOM tags and values for the image– including private DICOM tags. Flywheel looks up tags in a dictionary, if there is no match found, the viewer displays the offset for the label	None

Each category can have an only or except array that allows or restricts available tools in that category.

Below shows an example of all of the tools you can hide in the toolbar along with how to hide them using the config :

Example

"toolbar": {
    "Zoom": {
      "except": [
"Zoom",
"Magnify"
      ]
    },
    "Measure": {
      "except": [
        "Length",
        "Bidirectional",
        "Angle"
      ]
    },
    "ROI": {
      "except": [
        "Ellipse",
        "Rectangle",
        "ROI Window",
        "Freehand",
        "Open Freehand",
        "Sculpt",
        "Eraser",
        "Clear"
      ]
    },
    "Segmentation": {
      "except": [
        "Segmentation"
      ]
    },
    "Reset": {
      "except": [
        "Reset"
      ]
    },
    "Annotate": {
      "except": [
        "Annotate"
      ]
    },
    "CINE": {
      "except": [
        "CINE"
      ]
    },
    "Protocols": {
      "except": [
        "Protocols"
      ]
    },
    "Download": {
      "except": [
        "Download"
      ]
    },
    "2D MPR": {
      "except": [
        "2D MPR"
      ]
    },
    "Help": {
      "except": [
        "Help"
      ]
    },
    "Link": {
      "except": [
        "Scroll",
        "Levels",
        "Zoom"
      ]
    },
    "Crosshairs": {
      "except": [
        "Crosshairs"
      ]
    }
  }

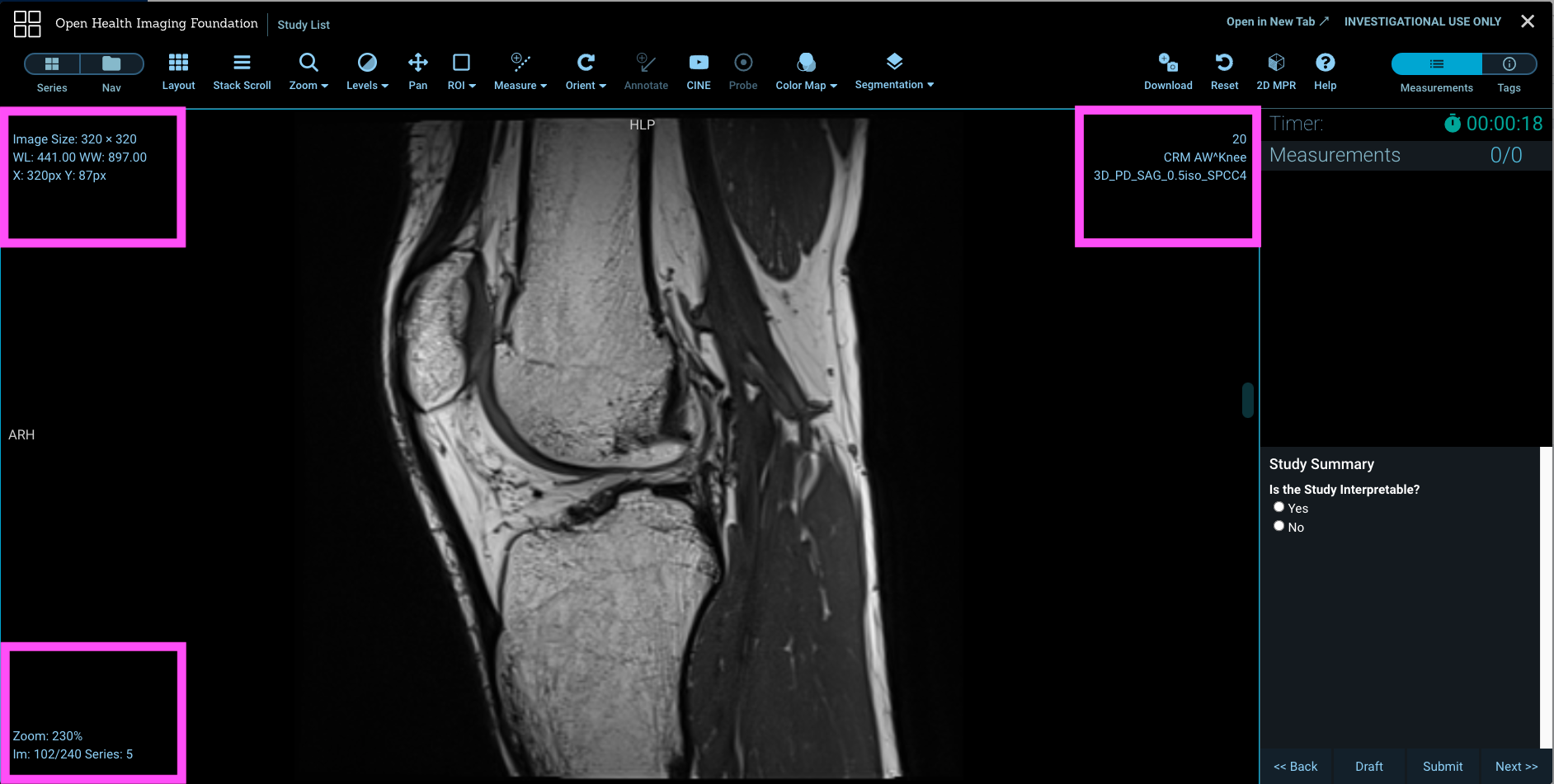

Overlay: Display Scan Information on the Image

The overlay allows you to configure what type of data is displayed over an image in the viewer. This allows the reader to easily find relevant information about the scan like like acquisition date or patient age .

Below is an example of the default overlay:

Example

{
  "overlay": {
    "color": "lime",
    "topLeft": [
      "Image Size: {rows:required} × {columns:required}",
      "WL: {windowCenter:required} WW{windowWidth:required}",
      "X: {imageX}px Y: {imageY}px | Value:{modalityPixelValue:required} HU",
      "Thickness: {sliceThickness:required} mm Location {sliceLocation:required} mm"
    ],
    "topRight": [
      "{patientId}",
      "{patientName}",
      "{studyDescription}",
      "{seriesDescription}"
    ],
    "bottomRight": [
      "{echoTime:required}:{repetitionTime:required}",
      "{magneticFieldStrength:required}",
      "{acquisitionDate} {acquisitionTime}",
      "{protocolName}"
    ],
    "bottomLeft": [
      "Zoom: {zoomPercentage:required}%",
      "Im: {imageIndex:required}/{stackSize:required}
      Series: {seriesNumber:required}"
    ]
  }
}

The overlay is divided into 4 parts that determine where the text appears: "topLeft", "topRight", "bottomRight", and "bottomLeft".

Property	Description	Example
color	Choose the color of the text on the overlay	`"color": "<color>"` The following formats are supported: Known Colors "color" : "red" RGB "color" : "rgb (255,255,255)" RGBA "color" : "rgba (102,175,233,0.6)" HSL "color" : "hsl (240, 100%, 75%)" HSLA "color" : "hsla (240, 25%, 25%, .5)" Hexadecimal "color" : "#333" or "color" : "#3D5E7F"
DICOM keyword	Displays the value for the specified DICOM tag	"`{dicomKeyword}`" You can also indicate that a tag is required by entering `"{dicomKeyword:required}"`. For example `"{patientName:required}"`. If the DICOM file does not have the required tag, it will not display in the overlay. With multiple tags marked required in a given line, all must be present in the image for the line to be displayed in the overlay.
text	add any descriptive text to your custom overlay by entering the string in your config file.	`"Series: {seriesNumber:required}"` or `"Subject's UID: {patientId}"`

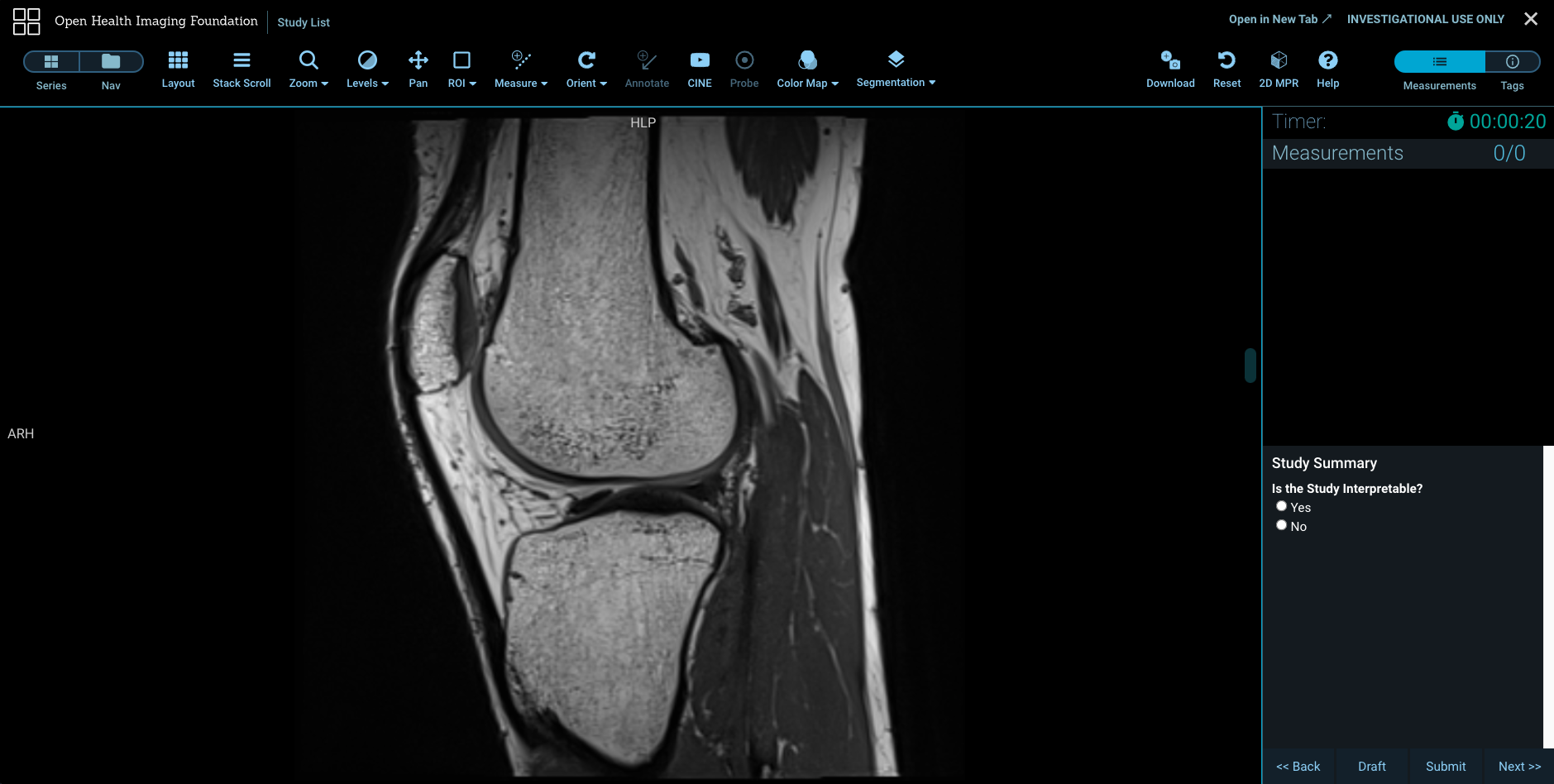

To remove all overlay text, upload an ohif_config.json with a blank overlay section as shown below:

Example

{
  "overlay": {
    "topLeft": [],
    "topRight": [],
    "bottomRight": [],
    "bottomLeft": []
  }
}

Overlay Text

Property	Description	Type
required	If it is specified in the string then it will display in the overlay if it has a value.	string
rows	Original image height	number
columns	Original image width	number
windowCenter	The center of range	number
windowWidth	The range of the CT Image's number	number
imageX	The current x position of an image	number
imageY	The current y position of an image	number
modalityPixelValue	The stored pixel value of the pixels in the sampling rectangle	number
sliceThickness	Nominal slice thickness in millimeters (mm)	number
sliceLocation	Relative position of the image plane in millimeters (mm)	number
bitsAllocated	Number of bits allocated for each pixel sample	number
acquisitionDate	The date the acquisition of the data that resulted in this image started	string
acquisitionTime	The time the acquisition of data that resulted in this image started	string
protocolName	User-defined description of the conditions under which the Series was performed	string
magneticFieldStrength	Nominal field strength of the MR Magnet in teslas (T)	number
repetitionTime	The period between the beginning of a pulse sequence and the beginning of the succeeding (essentially identical) pulse sequence in milliseconds (ms)	number
echoTime	Time between the middle of the excitation pulse and the peak of the echo produced in milliseconds (ms)	number
zoomPercentage	scale * 100	string
imageIndex	An index identifying the position of this image within a PET series	number
stackSize	Size of the stack	number
seriesNumber	A number that identifies the Series	number
modality	Type of equipment that originally acquired the data used to create the images in the Series	string
seriesInstanceUID	Unique identifier of the Series containing the referenced Instances	string
seriesDescription	Description of the Series	string
studyInstanceUID	Unique identifier of the Study containing the referenced Instances	string
seriesDate	Date the Series started	date
seriesTime	Time the Series started	time
patientAge	Age of the Patient	string
patientSize	Length (height) of the Patient in meters	number
patientWeight	Weight of the patient in kilograms
frameOfReferenceUID	Uniquely identifies the Frame of Reference for a Series	string
imageOrientationPatient	Specifies the direction cosines of the first row and the first column with respect to the patient	number
imagePositionPatient	Patient position descriptor relative to the equipment	string
pixelSpacing	Physical distance in the patient between the center of each pixel in millimeters (mm) Specified by a numeric pair - `adjacent row spacing [delimiter] adjacent column spacing`	number
rowPixelSpacing	The spacing between the centers of adjacent rows (vertical spacing) in millimeters (mm)	number
columnPixelSpacing	The spacing between the centers of adjacent columns (horizontal spacing) in millimeters (mm)	number
samplesPerPixel	Number of samples (planes) in this image	number
photometricInterpretation	Specifies the intended interpretation of the pixel data	string
bitsStored	Number of bits stored for each pixel sample	number
highBit	Most significant bit for pixel sampling data	number
pixelRepresentation	Data representation of the pixel samples	number
planarConfiguration	Indicates whether the pixel data are encoded color-by-plane or color-by-pixel	number
pixelAspectRatio	Ratio of the vertical size and horizontal size of the pixels in the image specified by a pair of integer values where the first value is the vertical pixel size and the second value is the horizontal pixel size	number
smallestPixelValue	The minimum actual pixel value encountered in this image	number
largestPixelValue	The maximum actual pixel value encountered in this image	number
redPaletteColorLookupTableDescriptor	Specifies the format of the Red Palette Color Lookup Table Data (0028,1201)	number
greenPaletteColorLookupTableDescriptor	Specifies the format of the Green Palette Color Lookup Table Data (0028,1202)	number
bluePaletteColorLookupTableDescriptor	Specifies the format of the Blue Palette Color Lookup Table Data (0028,1203)	number
redPaletteColorLookupTableData	Red Palette Color Lookup Table Data	string
greenPaletteColorLookupTableData	Green Palette Color Lookup Table Data	string
bluePaletteColorLookupTableData	Blue Palette Color Lookup Table Data	string
rescaleIntercept	The value b in relationship between stored values (SV) and the output units	number
rescaleSlope	m in the equation specified in Rescale Intercept (0028,1052)	number
rescaleType	Specifies the output units of Rescale Slope (0028,1053) and Rescale Intercept (0028,1052)	string
sopClassUID	Uniquely identifies the SOP Class	string
sopInstanceUID	Uniquely identifies the SOP Instance (See Section C.12.1.1.1 for further explanation)	string
overlays	Indicates whether this overlay represents a region of interest or other graphics	string
patientName	Patient's full name	string
patientId	Primary identifier for the patient	string
instanceNumber	A number that identifies the image	string
lossyImageCompression	Specifies whether an image has undergone lossy compression at a point in its lifetime	string
lossyImageCompressionRatio	Describes the approximate lossy compression ratio(s) that have been applied to this image	number
lossyImageCompressionMethod	A label for the lossy compression method(s) that have been applied to this image	string
studyDescription	Institution-generated description or classification of the Study (component)	string
studyDate	Date the study started	date
studyTime	Time the study started	time
accessionNumber	A RIS-generated number that identifies the order for the study	string
frameTime	Nominal time per individual frame in milliseconds (ms)	number
laterality	Laterality of (paired) body part examined	string
scale	Image scaling refers to the resizing of a digital image	number
frameRate	Rate at which the frames of a multi-frame image should be displayed in frames/second (1000/frameTime)	string
compression	Compression, in general, aims to reduce file size, with or without decreasing data quality of the original file	string
wwwc	W: L: windowLevel with decimal precision 2	string
imageDimensions	The length and width of the digital image	string
pixelValue	The stored pixel value of the pixels in the sampling rectangle	number
rotation	Viewport rotation in degrees	number

Labels

Create custom labels and configure how they interact with other labels

Property	Description	Value
label	What appears to the reader as the label as well as how to reference the label	string
value	The key to store measurement as metadata	string
limit	The number of allowed measurements using this label per study	number
boundary	Sets a boundary for the contour so that distinct features cannot overlap	See below for more details

Boundary

label: the label that should be used as a boundary
direction: which direction the boundary applies.
Options for open contours are:
- up/down
- left/right
Options for closed contours are:
- Inward: label with boundary definition (alpha) needs to be fully encompassed in the other label noted (beta) Example: If beta was the rib cage and alpha was the heart, the heart is contained inside the chest cavity
- Outward: label with boundary definition (alpha) can not be encompassed in the other label noted (beta) // aka anywhere else in the image Example: If beta was the liver and alpha was the kidney, they are two separate organs that can't be inside one another

Example labels with boundaries:

{
  "zoomLevel": {
    "minimum": 0.25,
    "maximum": 20
  },
  "contourUnique": true,
  "labels": [
    {
      "label": "Bruch's Membrane",
      "value": "BM",
      "limit": 1
    },
    {
      "label": "Supraspinatus - anteroposterior",
      "value": "SAP",
      "limit": 1,
          "boundary":  [{"label": "Bruch's Membrane", "direction": "inward"}]
    },
    {
      "label": "Supraspinatus - mediolateral",
      "value": "SML",
      "limit": 2,
          "boundary":  [{"label": "SAP", "direction": "outward"}]
    },
    {
      "label": "Retinal Pigment Epithelium",
      "value": "RPE",
      "limit": 1
    },
    {
      "label": "Photoreceptor Layers",
      "value": "PR",
      "limit": 1,
      "boundary": [
        {
          "label": "Retinal Pigment Epithelium",
          "direction": "inward"
        }
      ]
    },
    {
      "label": "External Limiting Membrane",
      "value": "ELM",
      "limit": 1,
      "boundary": [
        {
          "label": "PR",
          "direction": "up/down"
        }
      ]
    },
    {
      "label": "Ellipsoid Zone",
      "value": "EZ",
      "limit": 1,
          "boundary":  [{"label": "Retinal Pigment Epithelium", "direction": "left/right"}]
    },
    {
      "label": "Outer Plexiform Layer - Henle Fiber Layer",
      "value": "OPL-HFL",
      "limit": 1
    },
    {
      "label": "Inner Limiting Membrane",
      "value": "ILM",
      "limit": 1
    },
    {
      "label": "Intraretinal Fluid",
      "value": "IRF",
      "limit": 1
    },
    {
      "label": "Subretinal Fluid",
      "value": "SRF",
      "limit": 1
    },
    {
      "label": "Subretinal Hyperreflective Material",
      "value": "SHRM",
      "limit": 1
    },
    {
      "label": "Pigmented Epithelium Detachment - Fibrovascular",
      "value": "PED-F",
      "limit": 1
    },
    {
      "label": "Pigmented Epithelium Detachment - Serous",
      "value": "PED-S",
      "limit": 1
    },
    {
      "label": "Pigmented Epithelium Detachment - Drusenoid",
      "value": "PED-D",
      "limit": 1
    }
  ],
  "hotkeys": [
    {
      "commandName": "incrementActiveViewport",
      "label": "Next Viewport",
      "keys": [
        "right"
      ]
    },
    {
      "commandName": "decrementActiveViewport",
      "label": "Previous Viewport",
      "keys": [
        "left"
      ]
    },
    {
      "commandName": "rotateViewportCW",
      "label": "Rotate Right",
      "keys": [
        "r"
      ]
    },
    {
      "commandName": "rotateViewportCCW",
      "label": "Rotate Left",
      "keys": [
        "l"
      ]
    },
    {
      "commandName": "invertViewport",
      "label": "Invert",
      "keys": [
        "i"
      ]
    },
    {
      "commandName": "flipViewportVertical",
      "label": "Flip Horizontally",
      "keys": [
        "h"
      ]
    },
    {
      "commandName": "flipViewportHorizontal",
      "label": "Flip Vertically",
      "keys": [
        "v"
      ]
    },
    {
      "commandName": "scaleUpViewport",
      "label": "Zoom In",
      "keys": [
        "+"
      ]
    },
    {
      "commandName": "scaleDownViewport",
      "label": "Zoom Out",
      "keys": [
        "-"
      ]
    },
    {
      "commandName": "fitViewportToWindow",
      "label": "Zoom to Fit",
      "keys": [
        "="
      ]
    },
    {
      "commandName": "resetViewport",
      "label": "Reset",
      "keys": [
        "space"
      ]
    },
    {
      "commandName": "nextImage",
      "label": "Next Image",
      "keys": [
        "down"
      ]
    },
    {
      "commandName": "previousImage",
      "label": "Previous Image",
      "keys": [
        "up"
      ]
    },
    {
      "commandName": "previousViewportDisplaySet",
      "label": "Previous Series",
      "keys": [
        "pagedown"
      ]
    },
    {
      "commandName": "nextViewportDisplaySet",
      "label": "Next Series",
      "keys": [
        "pageup"
      ]
    },
    {
      "commandName": "deleteMeasurement",
      "label": "Delete Measurement",
      "keys": [
        "backspace",
        "del"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Zoom"
      },
      "label": "Zoom",
      "keys": [
        "z"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Wwwc"
      },
      "label": "Wwwc",
      "keys": [
        "w",
        "esc"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Magnify"
      },
      "label": "Magnify",
      "keys": [
        "m"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Pan"
      },
      "label": "Pan",
      "keys": [
        "p"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "StackScroll"
      },
      "label": "Stack Scroll",
      "keys": [
        "s"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Angle"
      },
      "label": "Angle",
      "keys": [
        "a"
      ]
    },
    {
      "commandName": "prevMeasureTool",
      "label": "Previous Measurement Tool",
      "keys": [
        "["
      ]
    },
    {
      "commandName": "nextMeasureTool",
      "label": "Next Measurement Tool",
      "keys": [
        "]"
      ]
    },
    {
      "commandName": "firstImage",
      "label": "First Image",
      "keys": [
        "home"
      ]
    },
    {
      "commandName": "lastImage",
      "label": "Last Image",
      "keys": [
        "end"
      ]
    },
    {
      "commandName": "nextTemporalSeries",
      "label": "Next Time",
      "keys": [
        "."
      ]
    },
    {
      "commandName": "previousTemporalSeries",
      "label": "Previous Time",
      "keys": [
        ","
      ]
    },
    {
      "commandName": "setFullDynamicWWWC",
      "label": "Full Dynamic W/L",
      "keys": [
        "0"
      ]
    },
    {
      "commandName": "windowLevelPreset1",
      "label": "W/L Preset 1",
      "keys": [
        "1"
      ]
    },
    {
      "commandName": "windowLevelPreset2",
      "label": "W/L Preset 2",
      "keys": [
        "2"
      ]
    },
    {
      "commandName": "windowLevelPreset3",
      "label": "W/L Preset 3",
      "keys": [
        "3"
      ]
    },
    {
      "commandName": "windowLevelPreset4",
      "label": "W/L Preset 4",
      "keys": [
        "4"
      ]
    },
    {
      "commandName": "windowLevelPreset5",
      "label": "W/L Preset 5",
      "keys": [
        "5"
      ]
    },
    {
      "commandName": "windowLevelPreset6",
      "label": "W/L Preset 6",
      "keys": [
        "6"
      ]
    },
    {
      "commandName": "windowLevelPreset7",
      "label": "W/L Preset 7",
      "keys": [
        "7"
      ]
    },
    {
      "commandName": "windowLevelPreset8",
      "label": "W/L Preset 8",
      "keys": [
        "8"
      ]
    },
    {
      "commandName": "windowLevelPreset9",
      "label": "W/L Preset 9",
      "keys": [
        "9"
      ]
    },
    {
      "commandName": "mpr2d",
      "label": "2D MPR",
      "keys": [
        "d"
      ]
    }
  ],
  "mouseActions": [
    {
      "toolName": "Rotate",
      "button": "middle"
    },
    {
      "toolName": "StackScroll",
      "button": "right"
    },
    {
      "toolName": "Crosshair",
      "button": "left"
    },
    {
      "toolName": "ZoomMouseWheel",
      "button": "wheel"
    }
  ]
}

Layouts

Specify different hanging protocols and configure the following settings for what images appear as well as how they are displayed.

Property	Description	Value	Required
name	Any name for layout	string	yes
selector	Define tags and values for finding matching protocol for a study/series metadata	**tag - DICOM tags or property name match - matching regular expression	yes
type	Define the type of layout	**grid - Grid type layout(Default) asymmetric - Asymmetric type layout	no
position	Position of the viewport	x - Horizontal position value in range 0 -1 y** - Vertical position value in range 0 -1	yes
size	Size of the viewport	**width - Horizontal size value in range 0 -1 height - Vertical size value in range 0 -1	yes
type	Type of the viewport	2D - 2D DICOM image viewport(Default) 2D MPR - Multi-Planar-Reconstructed viewport with 2D display * 3D** - 3D volume display(Not supported now)	no
orientation	Orientation for 2D MPR viewport	**axial - Axial MPR view** sagittal - Sagittal MPR view coronal - Coronal MPR view Specify an array with 6 numbers specifying the slice normal and view up direction coordinate values	yes
SeriesDescription	Find the matching series description	string You can also use REGEX pattern matching.	yes
showFov	2D MPR viewport to show the ETDRS indicators if configured true (Only applicable to 2D MPR viewport)		no
fovDiameters	To specify the diameter of the FOV circles where the values should be in physical units (mm). This will be only applicable when "showFov" is configured as true		no
hideFovGrid	To hide the FOV circles and display only the FOV center icon in the FOV indicators		no

Grid

For defining the Grid layout, we have to define the viewports as an array of array where the outer array defines the row count and inner array defines the column count. Below is a sample 1x2 (1 Row, 2 Columns) format

Example

{
  "layouts": [
    {
      "name": "MR",
      "selector": {
        "tag": "00080060",
        "match": "^MR$"
      },
      "viewports": [
        [
          {
            "tag": "0008103E",
            "match": "^3D_PD.*"
          },
          {
            "tag": "0008103E",
            "match": "^3D_T2FS.*"
          }
        ]
      ]
    }]
}

Asymmetrical

For defining the asymmetric layout, we have to define the viewports as an array by providing the position and size of each viewport. The asymmetric format type is an extended viewport definition where we can specify the type of viewport(2D and 2D MPR) and the orientation for 2D MPR type. The Grid layout can also be achieved by using this asymmetric format by providing proper position and size values. Below is some of the sample asymmetric layout format:

Grid Layout with Asymmetric Layout Type

Example

{
  "layouts": [
    {
      "name": "MR",
      "selector": {
        "tag": "00080060",
        "match": "^.*"
      },
      "type": "asymmetric",
      "viewports": [
          {
                  "position": {"x": 0, "y": 0},
                  "size": {"width": 0.333, "height": 1},
                  "type": "2D MPR",
                  "orientation": "axial",
                  "SeriesDescription": "^.*"
          },
          {
                  "position": {"x": 0.333, "y": 0},
                  "size": {"width": 0.334, "height": 1},
                  "type": "2D MPR",
                  "orientation": "sagittal",
                  "SeriesDescription": "^.*"
          },
          {
                  "position": {"x": 0.667, "y": 0},
                  "size": {"width": 0.333, "height": 1},
                  "type": "2D",
                  "SeriesDescription": "^.*"
          }
        ]
    }]
}

Asymmetric Layout with Different Viewport Dimension

{
  "layouts": [
    {
      "name": "Modality",
      "selector": {
        "tag": "00080060",
        "match": "^.*"
      },
      "type": "asymmetric",
      "viewports": [
          {
                  "position": {"x": 0, "y": 0},
                  "size": {"width": 0.75, "height": 1},
                  "type": "2D",
                  "SeriesDescription": "^.*"
          },
          {
                  "position": {"x": 0.75, "y": 0},
                  "size": {"width": 0.25, "height": 0.5},
                  "type": "2D MPR",
                  "orientation": "sagittal",
                  "SeriesDescription": "^.*"
          },
          {
                  "position": {"x": 0.75, "y": 0.5},
                  "size": {"width": 0.25, "height": 0.5},
                  "type": "2D MPR",
                  "orientation": "coronal",
                  "SeriesDescription": "^.*"
          }
      ]
    }
]
}

Asymmetric Layout with Different Viewport Dimension and ETDRS Field of View Grid Defined

Of note, ETDRS stands for Early Treatment for Diabetic Retinopathy Study, and is an anatomic framework for reviewing pathologic findings on OCT/Ophthalmology data. The user is able to identify the foveal center using the central crosshair and then utilize the predefined rings (1mm, 3mm, and 6mm) to review pathologies and their potential impacts on vision based on their proximity to the foveal center.

Example

{
    "layouts": [
        {
            "name": "Modality",
            "selector": {
                "tag": "00080060",
                "match": "^.\*"
            },
            "type": "asymmetric",
            "viewports": [
                {
                    "position": {
                        "x": 0,
                        "y": 0
                    },
                    "size": {
                        "width": 0.75,
                        "height": 1
                    },
                    "type": "2D",
                    "SeriesDescription": "^.\*"
                },
                {
                    "position": {
                        "x": 0.75,
                        "y": 0
                    },
                    "size": {
                        "width": 0.25,
                        "height": 0.5
                    },
                    "type": "2D MPR",
                    "orientation": "sagittal",
                    "SeriesDescription": "^.\*"
                },
                {
                    "position": {
                        "x": 0.75,
                        "y": 0.5
                    },
                    "size": {
                        "width": 0.25,
                        "height": 0.5
                    },
                    "type": "2D MPR",
                    "orientation": "coronal",
                    "SeriesDescription": "^.\*",
                    "showFov": true,
                    "fovDiameters": [
                        1,
                        3,
                        6
                    ],
                    "hideFovGrid": false
                }
            ]
        }
    ]
}

Keyboard Shortcuts and Mouse Actions

To better fit your readers' workflows, configure keyboard shortcuts (also known as hotkeys) and mouse actions within the viewer.

HotKeys

Property	Description	Value
commandName	Describe the action	string
label	label the shortcut	string
keys	Key for the action	The key used for the shortcut

Example

{
"hotkeys": [
    {
      "commandName": "incrementActiveViewport",
      "label": "Next Viewport",
      "keys": [
        "right"
      ]
    },
    {
      "commandName": "decrementActiveViewport",
      "label": "Previous Viewport",
      "keys": [
        "left"
      ]
    },
    {
      "commandName": "rotateViewportCW",
      "label": "Rotate Right",
      "keys": [
        "r"
      ]
    },
    {
      "commandName": "rotateViewportCCW",
      "label": "Rotate Left",
      "keys": [
        "l"
      ]
    },
    {
      "commandName": "invertViewport",
      "label": "Invert",
      "keys": [
        "i"
      ]
    },
    {
      "commandName": "flipViewportHorizontal",
      "label": "Flip Horizontally",
      "keys": [
        "h"
      ]
    },
    {
      "commandName": "flipViewportVertical",
      "label": "Flip Vertically",
      "keys": [
        "v"
      ]
    },
    {
      "commandName": "scaleUpViewport",
      "label": "Zoom In",
      "keys": [
        "+"
      ]
    },
    {
      "commandName": "scaleDownViewport",
      "label": "Zoom Out",
      "keys": [
        "-"
      ]
    },
    {
      "commandName": "fitViewportToWindow",
      "label": "Zoom to Fit",
      "keys": [
        "="
      ]
    },
    {
      "commandName": "resetViewport",
      "label": "Reset",
      "keys": [
        "space"
      ]
    },
    {
      "commandName": "nextImage",
      "label": "Next Image",
      "keys": [
        "down"
      ]
    },
    {
      "commandName": "previousImage",
      "label": "Previous Image",
      "keys": [
        "up"
      ]
    },
    {
      "commandName": "previousViewportDisplaySet",
      "label": "Previous Series",
      "keys": [
        "pagedown"
      ]
    },
    {
      "commandName": "nextViewportDisplaySet",
      "label": "Next Series",
      "keys": [
        "pageup"
      ]
    },
    {
      "commandName": "deleteMeasurement",
      "label": "Delete Measurement",
      "keys": [
        "backspace",
        "del"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Zoom"
      },
      "label": "Zoom",
      "keys": [
        "z"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Wwwc"
      },
      "label": "Wwwc",
      "keys": [
        "w",
        "esc"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Magnify"
      },
      "label": "Magnify",
      "keys": [
        "m"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Pan"
      },
      "label": "Pan",
      "keys": [
        "p"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "StackScroll"
      },
      "label": "Stack Scroll",
      "keys": [
        "s"
      ]
    },
    {
      "commandName": "setActiveToolHotkey",
      "commandOptions": {
        "toolName": "Angle"
      },
      "label": "Angle",
      "keys": [
        "a"
      ]
    },
    {
      "commandName": "prevMeasureTool",
      "label": "Previous Measurement Tool",
      "keys": [
        "["
      ]
    },
    {
      "commandName": "nextMeasureTool",
      "label": "Next Measurement Tool",
      "keys": [
        "]"
      ]
    },
    {
      "commandName": "firstImage",
      "label": "First Image",
      "keys": [
        "home"
      ]
    },
    {
      "commandName": "lastImage",
      "label": "Last Image",
      "keys": [
        "end"
      ]
    },
    {
      "commandName": "nextTemporalSeries",
      "label": "Next Time",
      "keys": [
        "."
      ]
    },
    {
      "commandName": "previousTemporalSeries",
      "label": "Previous Time",
      "keys": [
        ","
      ]
    },
    {
      "commandName": "setFullDynamicWWWC",
      "label": "Full Dynamic W/L",
      "keys": [
        "0"
      ]
    },
    {
      "commandName": "windowLevelPreset1",
      "label": "W/L Preset 1",
      "keys": [
        "1"
      ]
    },
    {
      "commandName": "windowLevelPreset2",
      "label": "W/L Preset 2",
      "keys": [
        "2"
      ]
    },
    {
      "commandName": "windowLevelPreset3",
      "label": "W/L Preset 3",
      "keys": [
        "3"
      ]
    },
    {
      "commandName": "windowLevelPreset4",
      "label": "W/L Preset 4",
      "keys": [
        "4"
      ]
    },
    {
      "commandName": "windowLevelPreset5",
      "label": "W/L Preset 5",
      "keys": [
        "5"
      ]
    },
    {
      "commandName": "windowLevelPreset6",
      "label": "W/L Preset 6",
      "keys": [
        "6"
      ]
    },
    {
      "commandName": "windowLevelPreset7",
      "label": "W/L Preset 7",
      "keys": [
        "7"
      ]
    },
    {
      "commandName": "windowLevelPreset8",
      "label": "W/L Preset 8",
      "keys": [
        "8"
      ]
    },
    {
      "commandName": "windowLevelPreset9",
      "label": "W/L Preset 9",
      "keys": [
        "9"
      ]
    },
    {
      "commandName": "mpr2d",
      "label": "2D MPR",
      "keys": [
        "d"
      ]
    }
  ]
}

MouseActions


Property	Description	Value
toolname	Tool from navigation bar to open	Zoom Pan Rotate StackScroll Wwwc (ROI Window) StackScrollMouseWheel ZoomMouseWheel Crosshair RectangleRoi EllipticalRoi * FreehandRoi
Button	part of mouse	left right middle wheel These options depend on how you are viewing images. See the table below for more details

Button	Tools available in 2D	Tools available in 2D MPR
left	Rotate StackScroll Zoom Pan Wwwc ROI tools	Rotate StackScroll Zoom Pan Wwwc * Crosshairs
right	Pan Zoom Rotate StackScroll * Wwwc	Pan Zoom * Rotate
middle	Pan Zoom Rotate StackScroll * Wwwc	Pan Zoom * Rotate
wheel	StackScrollMouseWheel ZoomMouseWheel	StackScrollMouseWheel ZoomMouseWheel

Example

{
  "mouseActions": [
    {
      "toolName": "Zoom",
      "button": "middle"
    },
    {
      "toolName": "Pan",
      "button": "right"
    },
    {
      "toolName": "RectangleRoi",
      "button": "left"
    },
    {
      "toolName": "StackScrollMouseWheel",
      "button": "wheel"
    }
  ]
}

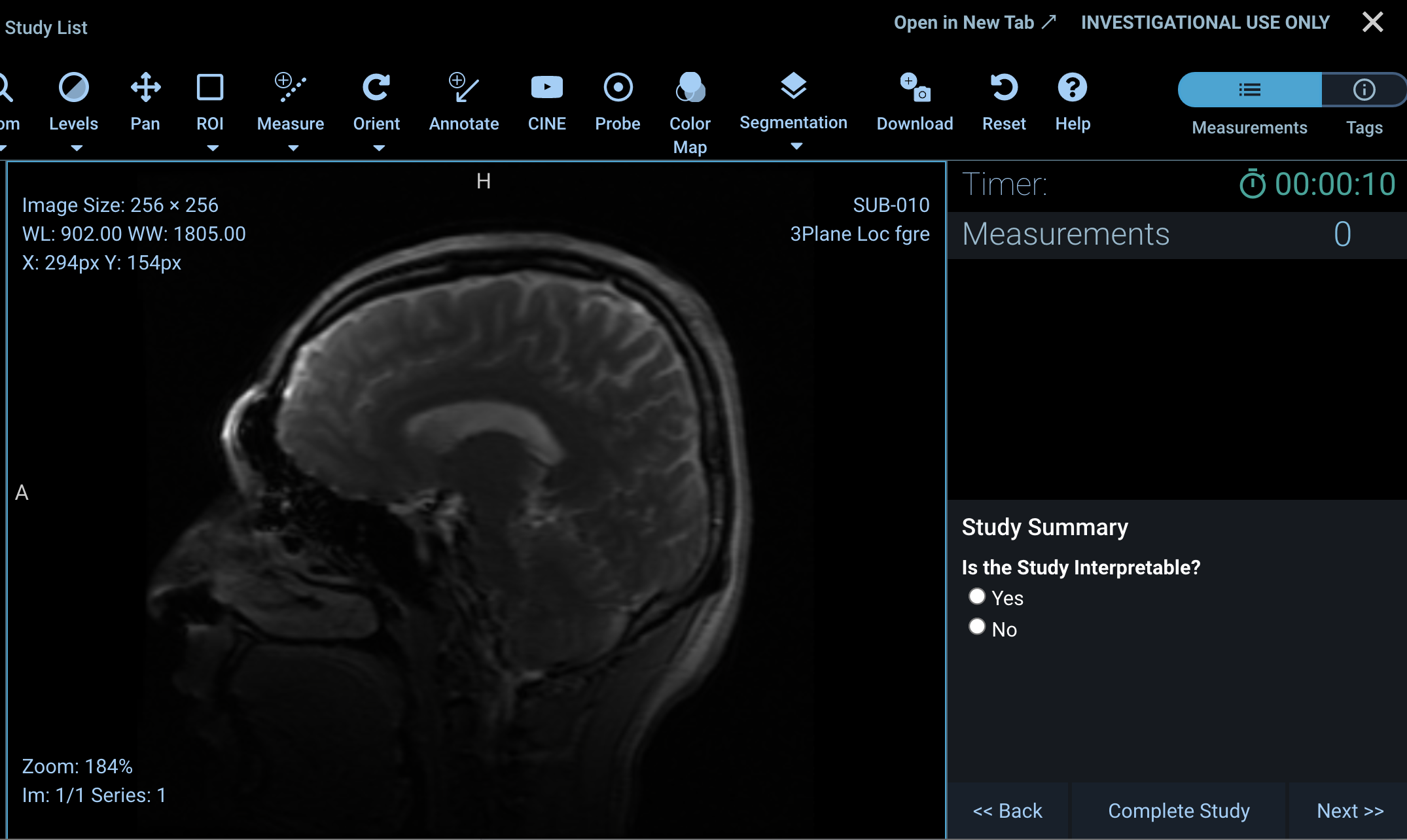

`studyForm`

The studyForm section is where you can create blind reader studies. These questions can conditional based on the previous answer and you can configure certain tools and labels to appear based on answers. An example of the questions can be viewed below.

Property	Description	Value	Required
key	Property name to save question to study Custom Information	string (no special characters other than - and _)	yes
values	Choices for `radio` and `selectboxes` type questions.	Array of objects with the following properties: *label: Text for question* value: Value to store if option is selected excludeMeasurements: Don't render this option if the following measurements are selected requireMeasurements: Render this option if the following measurements are selected	no
label	Question text	string	yes
required	Require an answer for this question	boolean	no
type	The type of question	options: **radio : radio buttons and labels for each option in values** text: DEPRECATED - See textarea textarea : Text area with label textfield : text input (single line) with label **selectboxes : Checkboxes and labels for each option in values content: HTML Content. for example, adding a header to separate questions into different categories (use the html `html` key instead of the `label` key when using this)	yes
conditional	Condition under which to render this question. You can use the keys of other questions and values.	Object with the following properties: * json - The JSON Logic to determine if this component is conditionally available.	no
validate	Conditions under which to validate this question.	Object with the following properties: **required - If the field is required custom - A custom javascript based validation or a JSON object for using JSON Logic	no

Example

Below is an example of study form questions with conditional logic:

Example

{
"studyForm": {
    "components": [
      {
        "label": "Is the Study Interpretable?",
        "key": "interpretable",
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
        {
        "html": "<h4>A Header</h4>",
        "key": "header1",
        "type": "content",
        "conditional": {
          "json": {
            "==": [
              {
                "var": "next1"
              },
              "yes"
            ]
          }
        }
      },

      {
        "label": "-----------RETINAL LAYERS-----------",
        "key": "retinal_layers",
        "conditional": {
          "json": {
            "==": [
              {
                "var": "interpretable"
              },
              "yes"
            ]
          }
        },
        "required": false,
        "type": "radio",
        "values": []
      },
      {
        "label": "Is BM present?",
        "key": "pres_BM",
        "conditional": {
          "json": {
            "==": [
              {
                "var": "interpretable"
              },
              "yes"
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "BM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "BM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - BM?",
        "key": "pres_BM_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_BM"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_BM"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is SAP present?",
        "key": "pres_SAP",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_BM_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_BM_contour"
                  },
                  "possible"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_BM"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_BM"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "contourVisibility": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "SAP"
            ],
            "measurementTools": [
              "Length"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "SAP"
            ],
            "measurementTools": [
              "Length"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - SAP?",
        "key": "pres_SAP_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_SAP"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SAP"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is SML present?",
        "key": "pres_SML",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_SAP_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SAP_contour"
                  },
                  "possible"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SAP"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SAP"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "SML"
            ],
            "measurementTools": [
              "Bidirectional",
              "Angle"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "SML"
            ],
            "measurementTools": [
              "Bidirectional",
              "Angle"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - SML?",
        "key": "pres_SML_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_SML"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SML"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is RPE present?",
        "key": "pres_RPE",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_SML_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SML"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SML"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "contourVisibility": true,
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "RPE"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "RPE"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - RPE?",
        "key": "pres_RPE_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_RPE"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_RPE"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is EZ present?",
        "key": "pres_EZ",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_RPE_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_RPE"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_RPE"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "EZ"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "EZ"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - EZ?",
        "key": "pres_EZ_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_EZ"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_EZ"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is ELM present?",
        "key": "pres_ELM",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_EZ_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_EZ"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_EZ"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "ELM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "ELM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - ELM?",
        "key": "pres_ELM_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_ELM"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_ELM"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is OPL-HFL present?",
        "key": "pres_OPLHFL",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_ELM_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_ELM"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_ELM"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "OPL-HFL"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "OPL-HFL"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - OPL HFL?",
        "key": "pres_OPLHFL_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_OPLHFL"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_OPLHFL"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is ILM present?",
        "key": "pres_ILM",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_OPLHFL"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_OPLHFL"
                  },
                  "ungradable"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_OPLHFL_contour"
                  },
                  "yes"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "ILM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "ILM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          },
          {
            "label": "Contour complete - ILM?",
            "key": "pres_ILM_contour",
            "required": true,
            "type": "radio",
            "values": [
              {
                "value": "yes",
                "label": "Yes"
              },
              {
                "value": "no",
                "label": "No"
              }
            ]
          }
        ]
      },
      {
        "label": "--------------PATHOLOGY--------------",
        "key": "pathology",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_ILM_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_ILM"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_ILM"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": false,
        "type": "radio",
        "values": []
      },
      {
        "label": "Is IRF present?",
        "key": "pres_path_IRF",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_ILM_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_ILM"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_ILM"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "IRF"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "IRF"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - IRF?",
        "key": "pres_IRF_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_path_IRF"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_IRF"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is SRF present?",
        "key": "pres_path_SRF",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_IRF_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_IRF"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_IRF"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "SRF"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "SRF"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - SRF?",
        "key": "pres_SRF_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_path_SRF"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_SRF"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is SHRM present?",
        "key": "pres_path_SHRM",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_SRF_contour"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_SRF"
                  },
                  "no"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_SRF"
                  },
                  "ungradable"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes",
            "requireMeasurements": [
              "SHRM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "possible",
            "label": "Possible",
            "requireMeasurements": [
              "SHRM"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Contour complete - SHRM?",
        "key": "pres_SHRM_contour",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_path_SRF"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_SRF"
                  },
                  "possible"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "no",
            "label": "No"
          }
        ]
      },
      {
        "label": "Is PED present?",
        "key": "pres_path_PED",
        "conditional": {
          "json": {
            "or": [
              {
                "==": [
                  {
                    "var": "pres_path_SHRM"
                  },
                  "yes"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_path_SHRM"
                  },
                  "possible"
                ]
              },
              {
                "==": [
                  {
                    "var": "pres_SHRM_contour"
                  },
                  "yes"
                ]
              }
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "yes",
            "label": "Yes"
          },
          {
            "value": "possible",
            "label": "Possible"
          },
          {
            "value": "no",
            "label": "No"
          },
          {
            "value": "ungradable",
            "label": "Ungradable"
          }
        ]
      },
      {
        "label": "Which PED type?",
        "key": "pres_path_PED-type",
        "conditional": {
          "json": {
            "==": [
              {
                "var": "pres_path_PED"
              },
              "yes"
            ]
          }
        },
        "required": true,
        "type": "radio",
        "values": [
          {
            "value": "Fibrovascular",
            "label": "Fibrovascular (F)",
            "requireMeasurements": [
              "PED-F"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "serous",
            "label": "Serous (S)",
            "requireMeasurements": [
              "PED-S"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          },
          {
            "value": "drusenoid",
            "label": "Drusenoid (D)",
            "requireMeasurements": [
              "PED-D"
            ],
            "measurementTools": [
              "FreehandRoi"
            ]
          }
        ]
      },
      {
        "label": "Additional Notes",
        "key": "notes",
        "conditional": {
          "json": {
            "==": [
              {
                "var": "interpretable"
              },
              "yes"
            ]
          }
        },
        "required": false,
        "type": "text"
      }
    ]
  }
}

OHIF Config File

Introduction

Viewer Settings

Instruction Steps

Build a Study Form

Applying the OHIF configurations

General Settings

Toolbar

Overlay: Display Scan Information on the Image

Overlay Text

Labels

Boundary

Layouts

Grid

Asymmetrical

Grid Layout with Asymmetric Layout Type

Asymmetric Layout with Different Viewport Dimension

Asymmetric Layout with Different Viewport Dimension and ETDRS Field of View Grid Defined

Keyboard Shortcuts and Mouse Actions

HotKeys

MouseActions

studyForm

Example

`studyForm`
