Configuring the viewer

In order to create a consistent experience across users, you may want to configure the viewer so that specific settings are applied when users open the viewer. This can be achieved through creating an ohif_configv3.json configuration file for your project.

Create a configuration file for the V3 viewer

To create a configuration file for the V3 viewer:

1. Navigate to the Information tab of your project.

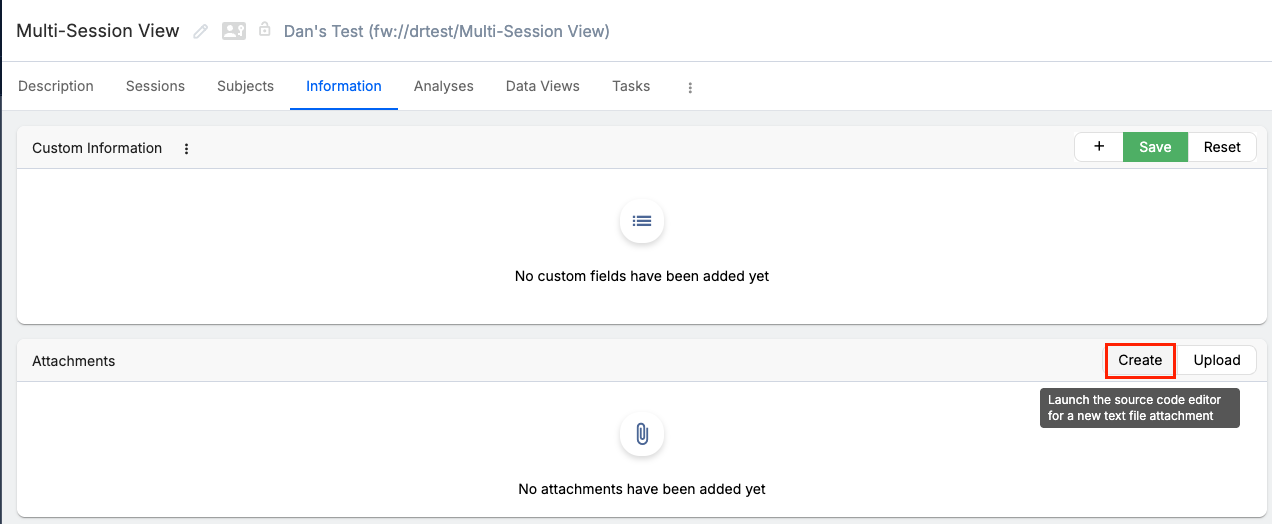

2. In the Attachments section, click on "Create" to launch the File Editor.



3. In the File Editor, select JSON as the file type.

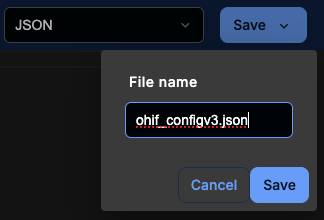

4. Upon configuring your file, save the file (Save > Save As...) under the name ohif_configv3.json.

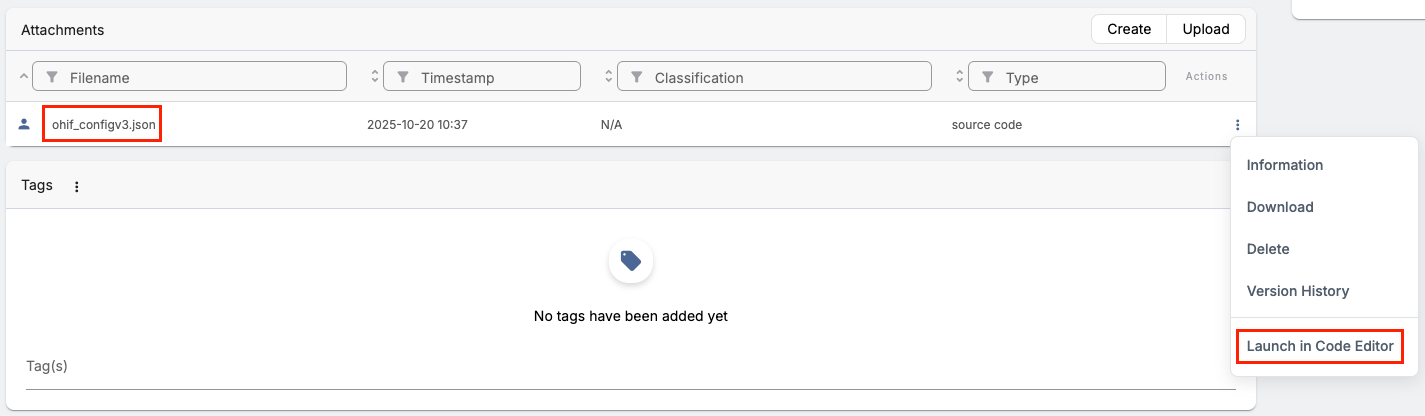

5. The configuration file is now present in the Attachments section and can be further edited by clicking on the Actions icon and selecting Launch in Code Editor.



Configuration options

Labels

• Property name: labels

Configuring labels allows to define a list of labels that users can chose from when annotating images. Additional parameters can be configured to define a color for each label, prompt users to select a label every time they create an annotation, or allow users to enter custom labels.

• Nested properties:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

{
    "labels": {
        "items": [
        { "value": "BM", "label": "Bruch's Membrane" },
        { "value": "SAP", "label": "Supraspinatus - anteroposterior" },
        ],
        "labelOnMeasure": false,
        "exclusive": false
     }
}
